tesseract::Plumbing Class Reference

#include <plumbing.h>

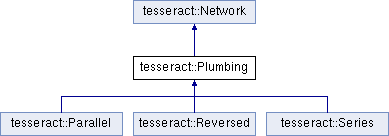

Inheritance diagram for tesseract::Plumbing:

Public Member Functions
	Plumbing (const STRING &name)
virtual	~Plumbing ()
virtual StaticShape	InputShape () const
virtual STRING	spec () const
virtual bool	IsPlumbingType () const
virtual void	SetEnableTraining (TrainingState state)
virtual void	SetNetworkFlags (uint32_t flags)
virtual int	InitWeights (float range, TRand *randomizer)
int	RemapOutputs (int old_no, const std::vector< int > &code_map) override
virtual void	ConvertToInt ()
virtual void	SetRandomizer (TRand *randomizer)
virtual void	AddToStack (Network *network)
virtual bool	SetupNeedsBackprop (bool needs_backprop)
virtual int	XScaleFactor () const
virtual void	CacheXScaleFactor (int factor)
virtual void	DebugWeights ()
const PointerVector< Network > &	stack () const
void	EnumerateLayers (const STRING *prefix, GenericVector< STRING > *layers) const
Network *	GetLayer (const char *id) const
float	LayerLearningRate (const char *id) const
void	ScaleLayerLearningRate (const char *id, double factor)
float *	LayerLearningRatePtr (const char *id) const
virtual bool	Serialize (TFile *fp) const
virtual bool	DeSerialize (TFile *fp)
void	Update (float learning_rate, float momentum, float adam_beta, int num_samples) override
virtual void	CountAlternators (const Network &other, double *same, double *changed) const
Public Member Functions inherited from tesseract::Network
	Network ()
	Network (NetworkType type, const STRING &name, int ni, int no)
virtual	~Network ()
NetworkType	type () const
bool	IsTraining () const
bool	needs_to_backprop () const
int	num_weights () const
int	NumInputs () const
int	NumOutputs () const
virtual StaticShape	OutputShape (const StaticShape &input_shape) const
const STRING &	name () const
bool	TestFlag (NetworkFlags flag) const
virtual void	Forward (bool debug, const NetworkIO &input, const TransposedArray *input_transpose, NetworkScratch *scratch, NetworkIO *output)
virtual bool	Backward (bool debug, const NetworkIO &fwd_deltas, NetworkScratch *scratch, NetworkIO *back_deltas)
void	DisplayForward (const NetworkIO &matrix)
void	DisplayBackward (const NetworkIO &matrix)

Protected Attributes
PointerVector< Network >	stack_
GenericVector< float >	learning_rates_
Protected Attributes inherited from tesseract::Network
NetworkType	type_
TrainingState	training_
bool	needs_to_backprop_
int32_t	network_flags_
int32_t	ni_
int32_t	no_
int32_t	num_weights_
STRING	name_
ScrollView *	forward_win_
ScrollView *	backward_win_
TRand *	randomizer_

Additional Inherited Members
Static Public Member Functions inherited from tesseract::Network
static Network *	CreateFromFile (TFile *fp)
static void	ClearWindow (bool tess_coords, const char *window_name, int width, int height, ScrollView **window)
static int	DisplayImage (Pix *pix, ScrollView *window)
Protected Member Functions inherited from tesseract::Network
double	Random (double range)
Static Protected Attributes inherited from tesseract::Network
static char const *const	kTypeNames [NT_COUNT]

Detailed Description

Definition at line 30 of file plumbing.h.

Constructor & Destructor Documentation

Plumbing()

tesseract::Plumbing::Plumbing ( const STRING &  name )

explicit

Definition at line 25 of file plumbing.cpp.

  : Network(NT_PARALLEL, name, 0, 0) {
}

~Plumbing()

tesseract::Plumbing::~Plumbing ( )

virtual

Definition at line 29 of file plumbing.cpp.

                    {
}

Member Function Documentation

AddToStack()

void tesseract::Plumbing::AddToStack ( Network *  network )

virtual

Definition at line 85 of file plumbing.cpp.

                                          {
  if (stack_.empty()) {
    ni_ = network->NumInputs();
    no_ = network->NumOutputs();
  } else if (type_ == NT_SERIES) {
    // ni is input of first, no output of last, others match output to input.
    ASSERT_HOST(no_ == network->NumInputs());
    no_ = network->NumOutputs();
  } else {
    // All parallel types. Output is sum of outputs, inputs all match.
    ASSERT_HOST(ni_ == network->NumInputs());
    no_ += network->NumOutputs();
  }
  stack_.push_back(network);
}

CacheXScaleFactor()

void tesseract::Plumbing::CacheXScaleFactor ( int  factor )

virtual

Reimplemented from tesseract::Network.

Reimplemented in tesseract::Series.

Definition at line 129 of file plumbing.cpp.

                                           {
  for (int i = 0; i < stack_.size(); ++i) {
    stack_[i]->CacheXScaleFactor(factor);
  }
}

ConvertToInt()

void tesseract::Plumbing::ConvertToInt ( )

virtual

Reimplemented from tesseract::Network.

Definition at line 71 of file plumbing.cpp.

                            {
  for (int i = 0; i < stack_.size(); ++i)
    stack_[i]->ConvertToInt();
}

CountAlternators()

void tesseract::Plumbing::CountAlternators ( const Network &  other, double *  same, double *  changed  ) const

virtual

Reimplemented from tesseract::Network.

Definition at line 237 of file plumbing.cpp.

                                                       {
  ASSERT_HOST(other.type() == type_);
  const Plumbing* plumbing = static_cast<const Plumbing*>(&other);
  ASSERT_HOST(plumbing->stack_.size() == stack_.size());
  for (int i = 0; i < stack_.size(); ++i)
    stack_[i]->CountAlternators(*plumbing->stack_[i], same, changed);
}

DebugWeights()

void tesseract::Plumbing::DebugWeights ( )

virtual

Reimplemented from tesseract::Network.

Definition at line 136 of file plumbing.cpp.

                            {
  for (int i = 0; i < stack_.size(); ++i)
    stack_[i]->DebugWeights();
}

DeSerialize()

bool tesseract::Plumbing::DeSerialize ( TFile *  fp )

virtual

Reimplemented from tesseract::Network.

Definition at line 200 of file plumbing.cpp.

                                    {
  stack_.truncate(0);
  no_ = 0;  // We will be modifying this as we AddToStack.
  int32_t size;
  if (fp->FReadEndian(&size, sizeof(size), 1) != 1) return false;
  for (int i = 0; i < size; ++i) {
    Network* network = CreateFromFile(fp);
    if (network == nullptr) return false;
    AddToStack(network);
  }
  if ((network_flags_ & NF_LAYER_SPECIFIC_LR) &&
      !learning_rates_.DeSerialize(fp)) {
    return false;
  }
  return true;
}

EnumerateLayers()

void tesseract::Plumbing::EnumerateLayers	(	const STRING *	prefix,
		GenericVector< STRING > *	layers
	)		const

Definition at line 142 of file plumbing.cpp.

                                                                    {
  for (int i = 0; i < stack_.size(); ++i) {
    STRING layer_name;
    if (prefix) layer_name = *prefix;
    layer_name.add_str_int(":", i);
    if (stack_[i]->IsPlumbingType()) {
      Plumbing* plumbing = static_cast<Plumbing*>(stack_[i]);
      plumbing->EnumerateLayers(&layer_name, layers);
    } else {
      layers->push_back(layer_name);
    }
  }
}

GetLayer()

Network * tesseract::Plumbing::GetLayer

(

const char *

id

)

const

Definition at line 158 of file plumbing.cpp.

                                                {
  char* next_id;
  int index = strtol(id, &next_id, 10);
  if (index < 0 || index >= stack_.size()) return nullptr;
  if (stack_[index]->IsPlumbingType()) {
    Plumbing* plumbing = static_cast<Plumbing*>(stack_[index]);
    ASSERT_HOST(*next_id == ':');
    return plumbing->GetLayer(next_id + 1);
  }
  return stack_[index];
}

InitWeights()

int tesseract::Plumbing::InitWeights ( float  range, TRand *  randomizer  )

virtual

Reimplemented from tesseract::Network.

Reimplemented in tesseract::Series.

Definition at line 53 of file plumbing.cpp.

                                                        {
  num_weights_ = 0;
  for (int i = 0; i < stack_.size(); ++i)
    num_weights_ += stack_[i]->InitWeights(range, randomizer);
  return num_weights_;
}

InputShape()

virtual StaticShape tesseract::Plumbing::InputShape ( ) const

inlinevirtual

Reimplemented from tesseract::Network.

Definition at line 37 of file plumbing.h.

{ return stack_[0]->InputShape(); }

IsPlumbingType()

virtual bool tesseract::Plumbing::IsPlumbingType ( ) const

inlinevirtual

Reimplemented from tesseract::Network.

Definition at line 44 of file plumbing.h.

{ return true; }

LayerLearningRate()

float tesseract::Plumbing::LayerLearningRate ( const char *  id ) const

inline

Definition at line 105 of file plumbing.h.

                                                {
    const float* lr_ptr = LayerLearningRatePtr(id);
    ASSERT_HOST(lr_ptr != nullptr);
    return *lr_ptr;
  }

LayerLearningRatePtr()

float * tesseract::Plumbing::LayerLearningRatePtr

(

const char *

id

)

const

Definition at line 171 of file plumbing.cpp.

                                                          {
  char* next_id;
  int index = strtol(id, &next_id, 10);
  if (index < 0 || index >= stack_.size()) return nullptr;
  if (stack_[index]->IsPlumbingType()) {
    Plumbing* plumbing = static_cast<Plumbing*>(stack_[index]);
    ASSERT_HOST(*next_id == ':');
    return plumbing->LayerLearningRatePtr(next_id + 1);
  }
  if (index < 0 || index >= learning_rates_.size()) return nullptr;
  return &learning_rates_[index];
}

RemapOutputs()

int tesseract::Plumbing::RemapOutputs ( int  old_no, const std::vector< int > &  code_map  )

overridevirtual

Reimplemented from tesseract::Network.

Reimplemented in tesseract::Series.

Definition at line 62 of file plumbing.cpp.

                                                                     {
  num_weights_ = 0;
  for (int i = 0; i < stack_.size(); ++i) {
    num_weights_ += stack_[i]->RemapOutputs(old_no, code_map);
  }
  return num_weights_;
}

ScaleLayerLearningRate()

void tesseract::Plumbing::ScaleLayerLearningRate ( const char *  id, double  factor  )

inline

Definition at line 111 of file plumbing.h.

                                                             {
    float* lr_ptr = LayerLearningRatePtr(id);
    ASSERT_HOST(lr_ptr != nullptr);
    *lr_ptr *= factor;
  }

Serialize()

bool tesseract::Plumbing::Serialize ( TFile *  fp ) const

virtual

Reimplemented from tesseract::Network.

Definition at line 185 of file plumbing.cpp.

                                        {
  if (!Network::Serialize(fp)) return false;
  int32_t size = stack_.size();
  // Can't use PointerVector::Serialize here as we need a special DeSerialize.
  if (fp->FWrite(&size, sizeof(size), 1) != 1) return false;
  for (int i = 0; i < size; ++i)
    if (!stack_[i]->Serialize(fp)) return false;
  if ((network_flags_ & NF_LAYER_SPECIFIC_LR) &&
      !learning_rates_.Serialize(fp)) {
    return false;
  }
  return true;
}

SetEnableTraining()

void tesseract::Plumbing::SetEnableTraining ( TrainingState  state )

virtual

Reimplemented from tesseract::Network.

Definition at line 34 of file plumbing.cpp.

                                                    {
  Network::SetEnableTraining(state);
  for (int i = 0; i < stack_.size(); ++i)
    stack_[i]->SetEnableTraining(state);
}

SetNetworkFlags()

void tesseract::Plumbing::SetNetworkFlags ( uint32_t  flags )

virtual

Reimplemented from tesseract::Network.

Definition at line 42 of file plumbing.cpp.

                                             {
  Network::SetNetworkFlags(flags);
  for (int i = 0; i < stack_.size(); ++i)
    stack_[i]->SetNetworkFlags(flags);
}

SetRandomizer()

void tesseract::Plumbing::SetRandomizer ( TRand *  randomizer )

virtual

Reimplemented from tesseract::Network.

Definition at line 79 of file plumbing.cpp.

                                              {
  for (int i = 0; i < stack_.size(); ++i)
    stack_[i]->SetRandomizer(randomizer);
}

SetupNeedsBackprop()

bool tesseract::Plumbing::SetupNeedsBackprop ( bool  needs_backprop )

virtual

Reimplemented from tesseract::Network.

Reimplemented in tesseract::Series.

Definition at line 103 of file plumbing.cpp.

                                                     {
  if (IsTraining()) {
    needs_to_backprop_ = needs_backprop;
    bool retval = needs_backprop;
    for (int i = 0; i < stack_.size(); ++i) {
      if (stack_[i]->SetupNeedsBackprop(needs_backprop)) retval = true;
    }
    return retval;
  }
  // Frozen networks don't do backprop.
  needs_to_backprop_ = false;
  return false;
}

spec()

virtual STRING tesseract::Plumbing::spec ( ) const

inlinevirtual

Reimplemented from tesseract::Network.

Reimplemented in tesseract::Parallel, tesseract::Reversed, and tesseract::Series.

Definition at line 38 of file plumbing.h.

                              {
    return "Sub-classes of Plumbing must implement spec()!";
  }

stack()

const PointerVector<Network>& tesseract::Plumbing::stack ( ) const

inline

Definition at line 96 of file plumbing.h.

                                              {
    return stack_;
  }

Update()

void tesseract::Plumbing::Update ( float  learning_rate, float  momentum, float  adam_beta, int  num_samples  )

overridevirtual

Reimplemented from tesseract::Network.

Definition at line 219 of file plumbing.cpp.

                                       {
  for (int i = 0; i < stack_.size(); ++i) {
    if (network_flags_ & NF_LAYER_SPECIFIC_LR) {
      if (i < learning_rates_.size())
        learning_rate = learning_rates_[i];
      else
        learning_rates_.push_back(learning_rate);
    }
    if (stack_[i]->IsTraining()) {
      stack_[i]->Update(learning_rate, momentum, adam_beta, num_samples);
    }
  }
}

XScaleFactor()

int tesseract::Plumbing::XScaleFactor ( ) const

virtual

Reimplemented from tesseract::Network.

Reimplemented in tesseract::Series.

Definition at line 123 of file plumbing.cpp.

                                 {
  return stack_[0]->XScaleFactor();
}

Member Data Documentation

learning_rates_

GenericVector<float> tesseract::Plumbing::learning_rates_

protected

Definition at line 139 of file plumbing.h.

stack_

PointerVector<Network> tesseract::Plumbing::stack_

protected

Definition at line 136 of file plumbing.h.

---

The documentation for this class was generated from the following files:

• /home/stweil/src/github/tesseract-ocr/tesseract/lstm/plumbing.h
• /home/stweil/src/github/tesseract-ocr/tesseract/lstm/plumbing.cpp
