tesseract::ColPartitionGrid Class Reference

#include <colpartitiongrid.h>

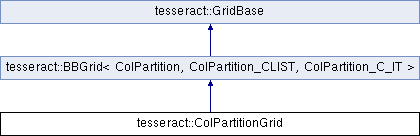

Inheritance diagram for tesseract::ColPartitionGrid:

Public Member Functions
	ColPartitionGrid ()=default
	ColPartitionGrid (int gridsize, const ICOORD &bleft, const ICOORD &tright)
	~ColPartitionGrid () override=default
void	HandleClick (int x, int y) override
void	Merges (const std::function< bool(ColPartition *, TBOX *)> &box_cb, const std::function< bool(const ColPartition *, const ColPartition *)> &confirm_cb)
bool	MergePart (const std::function< bool(ColPartition *, TBOX *)> &box_cb, const std::function< bool(const ColPartition *, const ColPartition *)> &confirm_cb, ColPartition *part)
int	ComputeTotalOverlap (ColPartitionGrid **overlap_grid)
void	FindOverlappingPartitions (const TBOX &box, const ColPartition *not_this, ColPartition_CLIST *parts)
ColPartition *	BestMergeCandidate (const ColPartition *part, ColPartition_CLIST *candidates, bool debug, const std::function< bool(const ColPartition *, const ColPartition *)> &confirm_cb, int *overlap_increase)
void	SplitOverlappingPartitions (ColPartition_LIST *big_parts)
bool	GridSmoothNeighbours (BlobTextFlowType source_type, Image nontext_map, const TBOX &im_box, const FCOORD &rerotation)
void	ReflectInYAxis ()
void	Deskew (const FCOORD &deskew)
void	ExtractPartitionsAsBlocks (BLOCK_LIST *blocks, TO_BLOCK_LIST *to_blocks)
void	SetTabStops (TabFind *tabgrid)
bool	MakeColPartSets (PartSetVector *part_sets)
ColPartitionSet *	MakeSingleColumnSet (WidthCallback cb)
void	ClaimBoxes ()
void	ReTypeBlobs (BLOBNBOX_LIST *im_blobs)
void	RecomputeBounds (int gridsize, const ICOORD &bleft, const ICOORD &tright, const ICOORD &vertical)
void	GridFindMargins (ColPartitionSet **best_columns)
void	ListFindMargins (ColPartitionSet **best_columns, ColPartition_LIST *parts)
void	DeleteParts ()
void	DeleteUnknownParts (TO_BLOCK *block)
void	DeleteNonLeaderParts ()
void	FindFigureCaptions ()
void	FindPartitionPartners ()
void	FindPartitionPartners (bool upper, ColPartition *part)
void	FindVPartitionPartners (bool to_the_left, ColPartition *part)
void	RefinePartitionPartners (bool get_desperate)
Public Member Functions inherited from tesseract::BBGrid< ColPartition, ColPartition_CLIST, ColPartition_C_IT >
	BBGrid ()
	BBGrid (int gridsize, const ICOORD &bleft, const ICOORD &tright)
	~BBGrid () override
void	Init (int gridsize, const ICOORD &bleft, const ICOORD &tright)
void	Clear ()
void	ClearGridData (void(*free_method)(ColPartition *))
void	InsertBBox (bool h_spread, bool v_spread, ColPartition *bbox)
void	InsertPixPtBBox (int left, int bottom, Image pix, ColPartition *bbox)
void	RemoveBBox (ColPartition *bbox)
bool	RectangleEmpty (const TBOX &rect)
IntGrid *	CountCellElements ()
ScrollView *	MakeWindow (int x, int y, const char *window_name)
void	DisplayBoxes (ScrollView *window)
void	AssertNoDuplicates ()
virtual void	HandleClick (int x, int y)
Public Member Functions inherited from tesseract::GridBase
	GridBase ()=default
	GridBase (int gridsize, const ICOORD &bleft, const ICOORD &tright)
virtual	~GridBase ()
void	Init (int gridsize, const ICOORD &bleft, const ICOORD &tright)
int	gridsize () const
int	gridwidth () const
int	gridheight () const
const ICOORD &	bleft () const
const ICOORD &	tright () const
void	GridCoords (int x, int y, int *grid_x, int *grid_y) const
void	ClipGridCoords (int *x, int *y) const

Additional Inherited Members
Protected Attributes inherited from tesseract::BBGrid< ColPartition, ColPartition_CLIST, ColPartition_C_IT >
ColPartition_CLIST *	grid_
Protected Attributes inherited from tesseract::GridBase
int	gridsize_
int	gridwidth_
int	gridheight_
int	gridbuckets_
ICOORD	bleft_
ICOORD	tright_

Detailed Description

Definition at line 32 of file colpartitiongrid.h.

Constructor & Destructor Documentation

ColPartitionGrid() [1/2]

tesseract::ColPartitionGrid::ColPartitionGrid ( )

default

ColPartitionGrid() [2/2]

tesseract::ColPartitionGrid::ColPartitionGrid	(	int	gridsize,
		const ICOORD &	bleft,
		const ICOORD &	tright
	)

Definition at line 67 of file colpartitiongrid.cpp.

    : BBGrid<ColPartition, ColPartition_CLIST, ColPartition_C_IT>(
          gridsize, bleft, tright) {}

~ColPartitionGrid()

tesseract::ColPartitionGrid::~ColPartitionGrid ( )

overridedefault

Member Function Documentation

BestMergeCandidate()

ColPartition * tesseract::ColPartitionGrid::BestMergeCandidate	(	const ColPartition *	part,
		ColPartition_CLIST *	candidates,
		bool	debug,
		const std::function< bool(const ColPartition *, const ColPartition *)> &	confirm_cb,
		int *	overlap_increase
	)

Definition at line 410 of file colpartitiongrid.cpp.

                           {
  if (overlap_increase != nullptr) {
    *overlap_increase = 0;
  }
  if (candidates->empty()) {
    return nullptr;
  }
  int ok_overlap =
      static_cast<int>(kTinyEnoughTextlineOverlapFraction * gridsize() + 0.5);
  // The best neighbour to merge with is the one that causes least
  // total pairwise overlap among all the neighbours.
  // If more than one offers the same total overlap, choose the one
  // with the least total area.
  const TBOX &part_box = part->bounding_box();
  ColPartition_C_IT it(candidates);
  ColPartition *best_candidate = nullptr;
  // Find the total combined box of all candidates and the original.
  TBOX full_box(part_box);
  for (it.mark_cycle_pt(); !it.cycled_list(); it.forward()) {
    ColPartition *candidate = it.data();
    full_box += candidate->bounding_box();
  }
  // Keep valid neighbours in a list.
  ColPartition_CLIST neighbours;
  // Now run a rect search of the merged box for overlapping neighbours, as
  // we need anything that might be overlapped by the merged box.
  FindOverlappingPartitions(full_box, part, &neighbours);
  if (debug) {
    tprintf("Finding best merge candidate from %d, %d neighbours for box:",
            candidates->length(), neighbours.length());
    part_box.print();
  }
  // If the best increase in overlap is positive, then we also check the
  // worst non-candidate overlap. This catches the case of multiple good
  // candidates that overlap each other when merged. If the worst
  // non-candidate overlap is better than the best overlap, then return
  // the worst non-candidate overlap instead.
  ColPartition_CLIST non_candidate_neighbours;
  non_candidate_neighbours.set_subtract(SortByBoxLeft<ColPartition>, true,
                                        &neighbours, candidates);
  int worst_nc_increase = 0;
  int best_increase = INT32_MAX;
  int best_area = 0;
  for (it.mark_cycle_pt(); !it.cycled_list(); it.forward()) {
    ColPartition *candidate = it.data();
    if (confirm_cb != nullptr && !confirm_cb(part, candidate)) {
      if (debug) {
        tprintf("Candidate not confirmed:");
        candidate->bounding_box().print();
      }
      continue;
    }
    int increase = IncreaseInOverlap(part, candidate, ok_overlap, &neighbours);
    const TBOX &cand_box = candidate->bounding_box();
    if (best_candidate == nullptr || increase < best_increase) {
      best_candidate = candidate;
      best_increase = increase;
      best_area = cand_box.bounding_union(part_box).area() - cand_box.area();
      if (debug) {
        tprintf("New best merge candidate has increase %d, area %d, over box:",
                increase, best_area);
        full_box.print();
        candidate->Print();
      }
    } else if (increase == best_increase) {
      int area = cand_box.bounding_union(part_box).area() - cand_box.area();
      if (area < best_area) {
        best_area = area;
        best_candidate = candidate;
      }
    }
    increase = IncreaseInOverlap(part, candidate, ok_overlap,
                                 &non_candidate_neighbours);
    if (increase > worst_nc_increase) {
      worst_nc_increase = increase;
    }
  }
  if (best_increase > 0) {
    // If the worst non-candidate increase is less than the best increase
    // including the candidates, then all the candidates can merge together
    // and the increase in outside overlap would be less, so use that result,
    // but only if each candidate is either a good diacritic merge with part,
    // or an ok merge candidate with all the others.
    // See TestCompatibleCandidates for more explanation and a picture.
    if (worst_nc_increase < best_increase &&
        TestCompatibleCandidates(*part, debug, candidates)) {
      best_increase = worst_nc_increase;
    }
  }
  if (overlap_increase != nullptr) {
    *overlap_increase = best_increase;
  }
  return best_candidate;
}

ClaimBoxes()

void tesseract::ColPartitionGrid::ClaimBoxes

(

)

Definition at line 885 of file colpartitiongrid.cpp.

                                  {
  // Iterate the ColPartitions in the grid.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    part->ClaimBoxes();
  }
}

ComputeTotalOverlap()

int tesseract::ColPartitionGrid::ComputeTotalOverlap

(

ColPartitionGrid **

overlap_grid

)

Definition at line 322 of file colpartitiongrid.cpp.

                                                                         {
  int total_overlap = 0;
  // Iterate the ColPartitions in the grid.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    ColPartition_CLIST neighbors;
    const TBOX &part_box = part->bounding_box();
    FindOverlappingPartitions(part_box, part, &neighbors);
    ColPartition_C_IT n_it(&neighbors);
    bool any_part_overlap = false;
    for (n_it.mark_cycle_pt(); !n_it.cycled_list(); n_it.forward()) {
      const TBOX &n_box = n_it.data()->bounding_box();
      int overlap = n_box.intersection(part_box).area();
      if (overlap > 0 && overlap_grid != nullptr) {
        if (*overlap_grid == nullptr) {
          *overlap_grid = new ColPartitionGrid(gridsize(), bleft(), tright());
        }
        (*overlap_grid)->InsertBBox(true, true, n_it.data()->ShallowCopy());
        if (!any_part_overlap) {
          (*overlap_grid)->InsertBBox(true, true, part->ShallowCopy());
        }
      }
      any_part_overlap = true;
      total_overlap += overlap;
    }
  }
  return total_overlap;
}

DeleteNonLeaderParts()

void tesseract::ColPartitionGrid::DeleteNonLeaderParts

(

)

Definition at line 1063 of file colpartitiongrid.cpp.

                                            {
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    if (part->flow() != BTFT_LEADER) {
      gsearch.RemoveBBox();
      if (part->ReleaseNonLeaderBoxes()) {
        InsertBBox(true, true, part);
        gsearch.RepositionIterator();
      } else {
        delete part;
      }
    }
  }
}

DeleteParts()

void tesseract::ColPartitionGrid::DeleteParts

(

)

Definition at line 1029 of file colpartitiongrid.cpp.

                                   {
  ColPartition_LIST dead_parts;
  ColPartition_IT dead_it(&dead_parts);
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    part->DisownBoxes();
    dead_it.add_to_end(part); // Parts will be deleted on return.
  }
  Clear();
}

DeleteUnknownParts()

void tesseract::ColPartitionGrid::DeleteUnknownParts

(

TO_BLOCK *

block

)

Definition at line 1044 of file colpartitiongrid.cpp.

                                                         {
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    if (part->blob_type() == BRT_UNKNOWN) {
      gsearch.RemoveBBox();
      // Once marked, the blobs will be swept up by DeleteUnownedNoise.
      part->set_flow(BTFT_NONTEXT);
      part->set_blob_type(BRT_NOISE);
      part->SetBlobTypes();
      part->DisownBoxes();
      delete part;
    }
  }
  block->DeleteUnownedNoise();
}

Deskew()

void tesseract::ColPartitionGrid::Deskew

(

const FCOORD &

deskew

)

Definition at line 751 of file colpartitiongrid.cpp.

                                                  {
  ColPartition_LIST parts;
  ColPartition_IT part_it(&parts);
  // Iterate the ColPartitions in the grid to extract them.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    part_it.add_after_then_move(part);
  }
  // Rebuild the grid to the new size.
  TBOX grid_box(bleft_, tright_);
  grid_box.rotate_large(deskew);
  Init(gridsize(), grid_box.botleft(), grid_box.topright());
  // Reinitializing the grid with rotated coords also clears all the
  // pointers, so parts will now own the ColPartitions. (Briefly).
  for (part_it.move_to_first(); !part_it.empty(); part_it.forward()) {
    part = part_it.extract();
    part->ComputeLimits();
    InsertBBox(true, true, part);
  }
}

ExtractPartitionsAsBlocks()

void tesseract::ColPartitionGrid::ExtractPartitionsAsBlocks	(	BLOCK_LIST *	blocks,
		TO_BLOCK_LIST *	to_blocks
	)

Definition at line 688 of file colpartitiongrid.cpp.

                                                                           {
  TO_BLOCK_IT to_block_it(to_blocks);
  BLOCK_IT block_it(blocks);
  // All partitions will be put on this list and deleted on return.
  ColPartition_LIST parts;
  ColPartition_IT part_it(&parts);
  // Iterate the ColPartitions in the grid to extract them.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    part_it.add_after_then_move(part);
    // The partition has to be at least vaguely like text.
    BlobRegionType blob_type = part->blob_type();
    if (BLOBNBOX::IsTextType(blob_type) ||
        (blob_type == BRT_UNKNOWN && part->boxes_count() > 1)) {
      PolyBlockType type =
          blob_type == BRT_VERT_TEXT ? PT_VERTICAL_TEXT : PT_FLOWING_TEXT;
      // Get metrics from the row that will be used for the block.
      TBOX box = part->bounding_box();
      int median_width = part->median_width();
      int median_height = part->median_height();
      // Turn the partition into a TO_ROW.
      TO_ROW *row = part->MakeToRow();
      if (row == nullptr) {
        // This partition is dead.
        part->DeleteBoxes();
        continue;
      }
      auto *block = new BLOCK("", true, 0, 0, box.left(), box.bottom(),
                              box.right(), box.top());
      block->pdblk.set_poly_block(new POLY_BLOCK(box, type));
      auto *to_block = new TO_BLOCK(block);
      TO_ROW_IT row_it(to_block->get_rows());
      row_it.add_after_then_move(row);
      // We haven't differentially rotated vertical and horizontal text at
      // this point, so use width or height as appropriate.
      if (blob_type == BRT_VERT_TEXT) {
        to_block->line_size = static_cast<float>(median_width);
        to_block->line_spacing = static_cast<float>(box.width());
        to_block->max_blob_size = static_cast<float>(box.width() + 1);
      } else {
        to_block->line_size = static_cast<float>(median_height);
        to_block->line_spacing = static_cast<float>(box.height());
        to_block->max_blob_size = static_cast<float>(box.height() + 1);
      }
      if (to_block->line_size == 0) {
        to_block->line_size = 1;
      }
      block_it.add_to_end(block);
      to_block_it.add_to_end(to_block);
    } else {
      // This partition is dead.
      part->DeleteBoxes();
    }
  }
  Clear();
  // Now it is safe to delete the ColPartitions as parts goes out of scope.
}

FindFigureCaptions()

void tesseract::ColPartitionGrid::FindFigureCaptions

(

)

Definition at line 1081 of file colpartitiongrid.cpp.

                                          {
  // For each image region find its best candidate text caption region,
  // if any and mark it as such.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    if (part->IsImageType()) {
      const TBOX &part_box = part->bounding_box();
      bool debug =
          AlignedBlob::WithinTestRegion(2, part_box.left(), part_box.bottom());
      ColPartition *best_caption = nullptr;
      int best_dist = 0;  // Distance to best_caption.
      int best_upper = 0; // Direction of best_caption.
      // Handle both lower and upper directions.
      for (int upper = 0; upper < 2; ++upper) {
        ColPartition_C_IT partner_it(upper ? part->upper_partners()
                                           : part->lower_partners());
        // If there are no image partners, then this direction is ok.
        for (partner_it.mark_cycle_pt(); !partner_it.cycled_list();
             partner_it.forward()) {
          ColPartition *partner = partner_it.data();
          if (partner->IsImageType()) {
            break;
          }
        }
        if (!partner_it.cycled_list()) {
          continue;
        }
        // Find the nearest totally overlapping text partner.
        for (partner_it.mark_cycle_pt(); !partner_it.cycled_list();
             partner_it.forward()) {
          ColPartition *partner = partner_it.data();
          if (!partner->IsTextType() || partner->type() == PT_TABLE) {
            continue;
          }
          const TBOX &partner_box = partner->bounding_box();
          if (debug) {
            tprintf("Finding figure captions for image part:");
            part_box.print();
            tprintf("Considering partner:");
            partner_box.print();
          }
          if (partner_box.left() >= part_box.left() &&
              partner_box.right() <= part_box.right()) {
            int dist = partner_box.y_gap(part_box);
            if (best_caption == nullptr || dist < best_dist) {
              best_dist = dist;
              best_caption = partner;
              best_upper = upper;
            }
          }
        }
      }
      if (best_caption != nullptr) {
        if (debug) {
          tprintf("Best caption candidate:");
          best_caption->bounding_box().print();
        }
        // We have a candidate caption. Qualify it as being separable from
        // any body text. We are looking for either a small number of lines
        // or a big gap that indicates a separation from the body text.
        int line_count = 0;
        int biggest_gap = 0;
        int smallest_gap = INT16_MAX;
        int total_height = 0;
        int mean_height = 0;
        ColPartition *end_partner = nullptr;
        ColPartition *next_partner = nullptr;
        for (ColPartition *partner = best_caption;
             partner != nullptr && line_count <= kMaxCaptionLines;
             partner = next_partner) {
          if (!partner->IsTextType()) {
            end_partner = partner;
            break;
          }
          ++line_count;
          total_height += partner->bounding_box().height();
          next_partner = partner->SingletonPartner(best_upper);
          if (next_partner != nullptr) {
            int gap =
                partner->bounding_box().y_gap(next_partner->bounding_box());
            if (gap > biggest_gap) {
              biggest_gap = gap;
              end_partner = next_partner;
              mean_height = total_height / line_count;
            } else if (gap < smallest_gap) {
              smallest_gap = gap;
            }
            // If the gap looks big compared to the text size and the smallest
            // gap seen so far, then we can stop.
            if (biggest_gap > mean_height * kMinCaptionGapHeightRatio &&
                biggest_gap > smallest_gap * kMinCaptionGapRatio) {
              break;
            }
          }
        }
        if (debug) {
          tprintf("Line count=%d, biggest gap %d, smallest%d, mean height %d\n",
                  line_count, biggest_gap, smallest_gap, mean_height);
          if (end_partner != nullptr) {
            tprintf("End partner:");
            end_partner->bounding_box().print();
          }
        }
        if (next_partner == nullptr && line_count <= kMaxCaptionLines) {
          end_partner = nullptr; // No gap, but line count is small.
        }
        if (line_count <= kMaxCaptionLines) {
          // This is a qualified caption. Mark the text as caption.
          for (ColPartition *partner = best_caption;
               partner != nullptr && partner != end_partner;
               partner = next_partner) {
            partner->set_type(PT_CAPTION_TEXT);
            partner->SetBlobTypes();
            if (debug) {
              tprintf("Set caption type for partition:");
              partner->bounding_box().print();
            }
            next_partner = partner->SingletonPartner(best_upper);
          }
        }
      }
    }
  }
}

FindOverlappingPartitions()

void tesseract::ColPartitionGrid::FindOverlappingPartitions	(	const TBOX &	box,
		const ColPartition *	not_this,
		ColPartition_CLIST *	parts
	)

Definition at line 356 of file colpartitiongrid.cpp.

                                                                            {
  ColPartitionGridSearch rsearch(this);
  rsearch.StartRectSearch(box);
  ColPartition *part;
  while ((part = rsearch.NextRectSearch()) != nullptr) {
    if (part != not_this) {
      parts->add_sorted(SortByBoxLeft<ColPartition>, true, part);
    }
  }
}

FindPartitionPartners() [1/2]

void tesseract::ColPartitionGrid::FindPartitionPartners

(

)

Definition at line 1212 of file colpartitiongrid.cpp.

                                             {
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    if (part->IsVerticalType()) {
      FindVPartitionPartners(true, part);
      FindVPartitionPartners(false, part);
    } else {
      FindPartitionPartners(true, part);
      FindPartitionPartners(false, part);
    }
  }
}

FindPartitionPartners() [2/2]

void tesseract::ColPartitionGrid::FindPartitionPartners	(	bool	upper,
		ColPartition *	part
	)

Definition at line 1229 of file colpartitiongrid.cpp.

                                                                           {
  if (part->type() == PT_NOISE) {
    return; // Noise is not allowed to partner anything.
  }
  const TBOX &box = part->bounding_box();
  int top = part->median_top();
  int bottom = part->median_bottom();
  int height = top - bottom;
  int mid_y = (bottom + top) / 2;
  ColPartitionGridSearch vsearch(this);
  // Search down for neighbour below
  vsearch.StartVerticalSearch(box.left(), box.right(), part->MidY());
  ColPartition *neighbour;
  ColPartition *best_neighbour = nullptr;
  int best_dist = INT32_MAX;
  while ((neighbour = vsearch.NextVerticalSearch(!upper)) != nullptr) {
    if (neighbour == part || neighbour->type() == PT_NOISE) {
      continue; // Noise is not allowed to partner anything.
    }
    int neighbour_bottom = neighbour->median_bottom();
    int neighbour_top = neighbour->median_top();
    int neighbour_y = (neighbour_bottom + neighbour_top) / 2;
    if (upper != (neighbour_y > mid_y)) {
      continue;
    }
    if (!part->HOverlaps(*neighbour) && !part->WithinSameMargins(*neighbour)) {
      continue;
    }
    if (!part->TypesMatch(*neighbour)) {
      if (best_neighbour == nullptr) {
        best_neighbour = neighbour;
      }
      continue;
    }
    int dist = upper ? neighbour_bottom - top : bottom - neighbour_top;
    if (dist <= kMaxPartitionSpacing * height) {
      if (dist < best_dist) {
        best_dist = dist;
        best_neighbour = neighbour;
      }
    } else {
      break;
    }
  }
  if (best_neighbour != nullptr) {
    part->AddPartner(upper, best_neighbour);
  }
}

FindVPartitionPartners()

void tesseract::ColPartitionGrid::FindVPartitionPartners	(	bool	to_the_left,
		ColPartition *	part
	)

Definition at line 1280 of file colpartitiongrid.cpp.

                                                                  {
  if (part->type() == PT_NOISE) {
    return; // Noise is not allowed to partner anything.
  }
  const TBOX &box = part->bounding_box();
  int left = part->median_left();
  int right = part->median_right();
  int width = right >= left ? right - left : -1;
  int mid_x = (left + right) / 2;
  ColPartitionGridSearch hsearch(this);
  // Search left for neighbour to_the_left
  hsearch.StartSideSearch(mid_x, box.bottom(), box.top());
  ColPartition *neighbour;
  ColPartition *best_neighbour = nullptr;
  int best_dist = INT32_MAX;
  while ((neighbour = hsearch.NextSideSearch(to_the_left)) != nullptr) {
    if (neighbour == part || neighbour->type() == PT_NOISE) {
      continue; // Noise is not allowed to partner anything.
    }
    int neighbour_left = neighbour->median_left();
    int neighbour_right = neighbour->median_right();
    int neighbour_x = (neighbour_left + neighbour_right) / 2;
    if (to_the_left != (neighbour_x < mid_x)) {
      continue;
    }
    if (!part->VOverlaps(*neighbour)) {
      continue;
    }
    if (!part->TypesMatch(*neighbour)) {
      continue; // Only match to other vertical text.
    }
    int dist = to_the_left ? left - neighbour_right : neighbour_left - right;
    if (dist <= kMaxPartitionSpacing * width) {
      if (dist < best_dist || best_neighbour == nullptr) {
        best_dist = dist;
        best_neighbour = neighbour;
      }
    } else {
      break;
    }
  }
  // For vertical partitions, the upper partner is to the left, and lower is
  // to the right.
  if (best_neighbour != nullptr) {
    part->AddPartner(to_the_left, best_neighbour);
  }
}

GridFindMargins()

void tesseract::ColPartitionGrid::GridFindMargins

(

ColPartitionSet **

best_columns

)

Definition at line 988 of file colpartitiongrid.cpp.

                                                                     {
  // Iterate the ColPartitions in the grid.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    // Set up a rectangle search x-bounded by the column and y by the part.
    ColPartitionSet *columns =
        best_columns != nullptr ? best_columns[gsearch.GridY()] : nullptr;
    FindPartitionMargins(columns, part);
    const TBOX &box = part->bounding_box();
    if (AlignedBlob::WithinTestRegion(2, box.left(), box.bottom())) {
      tprintf("Computed margins for part:");
      part->Print();
    }
  }
}

GridSmoothNeighbours()

bool tesseract::ColPartitionGrid::GridSmoothNeighbours	(	BlobTextFlowType	source_type,
		Image	nontext_map,
		const TBOX &	im_box,
		const FCOORD &	rerotation
	)

Definition at line 635 of file colpartitiongrid.cpp.

                                                                    {
  // Iterate the ColPartitions in the grid.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  bool any_changed = false;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    if (part->flow() != source_type ||
        BLOBNBOX::IsLineType(part->blob_type())) {
      continue;
    }
    const TBOX &box = part->bounding_box();
    bool debug = AlignedBlob::WithinTestRegion(2, box.left(), box.bottom());
    if (SmoothRegionType(nontext_map, im_box, rotation, debug, part)) {
      any_changed = true;
    }
  }
  return any_changed;
}

HandleClick()

void tesseract::ColPartitionGrid::HandleClick ( int  x, int  y  )

overridevirtual

Reimplemented from tesseract::BBGrid< ColPartition, ColPartition_CLIST, ColPartition_C_IT >.

Definition at line 73 of file colpartitiongrid.cpp.

                                               {
  BBGrid<ColPartition, ColPartition_CLIST, ColPartition_C_IT>::HandleClick(x,
                                                                           y);
  // Run a radial search for partitions that overlap.
  ColPartitionGridSearch radsearch(this);
  radsearch.SetUniqueMode(true);
  radsearch.StartRadSearch(x, y, 1);
  ColPartition *neighbour;
  FCOORD click(x, y);
  while ((neighbour = radsearch.NextRadSearch()) != nullptr) {
    const TBOX &nbox = neighbour->bounding_box();
    if (nbox.contains(click)) {
      tprintf("Block box:");
      neighbour->bounding_box().print();
      neighbour->Print();
    }
  }
}

ListFindMargins()

void tesseract::ColPartitionGrid::ListFindMargins	(	ColPartitionSet **	best_columns,
		ColPartition_LIST *	parts
	)

Definition at line 1011 of file colpartitiongrid.cpp.

                                                                 {
  ColPartition_IT part_it(parts);
  for (part_it.mark_cycle_pt(); !part_it.cycled_list(); part_it.forward()) {
    ColPartition *part = part_it.data();
    ColPartitionSet *columns = nullptr;
    if (best_columns != nullptr) {
      const TBOX &part_box = part->bounding_box();
      // Get the columns from the y grid coord.
      int grid_x, grid_y;
      GridCoords(part_box.left(), part_box.bottom(), &grid_x, &grid_y);
      columns = best_columns[grid_y];
    }
    FindPartitionMargins(columns, part);
  }
}

MakeColPartSets()

bool tesseract::ColPartitionGrid::MakeColPartSets

(

PartSetVector *

part_sets

)

Definition at line 803 of file colpartitiongrid.cpp.

                                                               {
  auto *part_lists = new ColPartition_LIST[gridheight()];
  part_sets->reserve(gridheight());
  // Iterate the ColPartitions in the grid to get parts onto lists for the
  // y bottom of each.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  bool any_parts_found = false;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    BlobRegionType blob_type = part->blob_type();
    if (blob_type != BRT_NOISE &&
        (blob_type != BRT_UNKNOWN || !part->boxes()->singleton())) {
      int grid_x, grid_y;
      const TBOX &part_box = part->bounding_box();
      GridCoords(part_box.left(), part_box.bottom(), &grid_x, &grid_y);
      ColPartition_IT part_it(&part_lists[grid_y]);
      part_it.add_to_end(part);
      any_parts_found = true;
    }
  }
  if (any_parts_found) {
    for (int grid_y = 0; grid_y < gridheight(); ++grid_y) {
      ColPartitionSet *line_set = nullptr;
      if (!part_lists[grid_y].empty()) {
        line_set = new ColPartitionSet(&part_lists[grid_y]);
      }
      part_sets->push_back(line_set);
    }
  }
  delete[] part_lists;
  return any_parts_found;
}

MakeSingleColumnSet()

ColPartitionSet * tesseract::ColPartitionGrid::MakeSingleColumnSet

(

WidthCallback

cb

)

Definition at line 841 of file colpartitiongrid.cpp.

                                                                       {
  ColPartition *single_column_part = nullptr;
  // Iterate the ColPartitions in the grid to get parts onto lists for the
  // y bottom of each.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    BlobRegionType blob_type = part->blob_type();
    if (blob_type != BRT_NOISE &&
        (blob_type != BRT_UNKNOWN || !part->boxes()->singleton())) {
      // Consider for single column.
      BlobTextFlowType flow = part->flow();
      if ((blob_type == BRT_TEXT &&
           (flow == BTFT_STRONG_CHAIN || flow == BTFT_CHAIN ||
            flow == BTFT_LEADER || flow == BTFT_TEXT_ON_IMAGE)) ||
          blob_type == BRT_RECTIMAGE || blob_type == BRT_POLYIMAGE) {
        if (single_column_part == nullptr) {
          single_column_part = part->ShallowCopy();
          single_column_part->set_blob_type(BRT_TEXT);
          // Copy the tabs from itself to properly setup the margins.
          single_column_part->CopyLeftTab(*single_column_part, false);
          single_column_part->CopyRightTab(*single_column_part, false);
        } else {
          if (part->left_key() < single_column_part->left_key()) {
            single_column_part->CopyLeftTab(*part, false);
          }
          if (part->right_key() > single_column_part->right_key()) {
            single_column_part->CopyRightTab(*part, false);
          }
        }
      }
    }
  }
  if (single_column_part != nullptr) {
    // Make a ColPartitionSet out of the single_column_part as a candidate
    // for the single column case.
    single_column_part->SetColumnGoodness(cb);
    return new ColPartitionSet(single_column_part);
  }
  return nullptr;
}

MergePart()

bool tesseract::ColPartitionGrid::MergePart	(	const std::function< bool(ColPartition *, TBOX *)> &	box_cb,
		const std::function< bool(const ColPartition *, const ColPartition *)> &	confirm_cb,
		ColPartition *	part
	)

Definition at line 119 of file colpartitiongrid.cpp.

                        {
  if (part->IsUnMergeableType()) {
    return false;
  }
  bool any_done = false;
  // Repeatedly merge part while we find a best merge candidate that works.
  bool merge_done = false;
  do {
    merge_done = false;
    TBOX box = part->bounding_box();
    bool debug = AlignedBlob::WithinTestRegion(2, box.left(), box.bottom());
    if (debug) {
      tprintf("Merge candidate:");
      box.print();
    }
    // Set up a rectangle search bounded by the part.
    if (!box_cb(part, &box)) {
      continue;
    }
    // Create a list of merge candidates.
    ColPartition_CLIST merge_candidates;
    FindMergeCandidates(part, box, debug, &merge_candidates);
    // Find the best merge candidate based on minimal overlap increase.
    int overlap_increase;
    ColPartition *neighbour = BestMergeCandidate(part, &merge_candidates, debug,
                                                 confirm_cb, &overlap_increase);
    if (neighbour != nullptr && overlap_increase <= 0) {
      if (debug) {
        tprintf("Merging:hoverlap=%d, voverlap=%d, OLI=%d\n",
                part->HCoreOverlap(*neighbour), part->VCoreOverlap(*neighbour),
                overlap_increase);
      }
      // Looks like a good candidate so merge it.
      RemoveBBox(neighbour);
      // We will modify the box of part, so remove it from the grid, merge
      // it and then re-insert it into the grid.
      RemoveBBox(part);
      part->Absorb(neighbour, nullptr);
      InsertBBox(true, true, part);
      merge_done = true;
      any_done = true;
    } else if (neighbour != nullptr) {
      if (debug) {
        tprintf("Overlapped when merged with increase %d: ", overlap_increase);
        neighbour->bounding_box().print();
      }
    } else if (debug) {
      tprintf("No candidate neighbour returned\n");
    }
  } while (merge_done);
  return any_done;
}

Merges()

void tesseract::ColPartitionGrid::Merges	(	const std::function< bool(ColPartition *, TBOX *)> &	box_cb,
		const std::function< bool(const ColPartition *, const ColPartition *)> &	confirm_cb
	)

Definition at line 99 of file colpartitiongrid.cpp.

                     {
  // Iterate the ColPartitions in the grid.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    if (MergePart(box_cb, confirm_cb, part)) {
      gsearch.RepositionIterator();
    }
  }
}

RecomputeBounds()

void tesseract::ColPartitionGrid::RecomputeBounds	(	int	gridsize,
		const ICOORD &	bleft,
		const ICOORD &	tright,
		const ICOORD &	vertical
	)

Definition at line 960 of file colpartitiongrid.cpp.

                                                               {
  ColPartition_LIST saved_parts;
  ColPartition_IT part_it(&saved_parts);
  // Iterate the ColPartitions in the grid to get parts onto a list.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    part_it.add_to_end(part);
  }
  // Reinitialize grid to the new size.
  Init(gridsize, bleft, tright);
  // Recompute the bounds of the parts and put them back in the new grid.
  for (part_it.move_to_first(); !part_it.empty(); part_it.forward()) {
    part = part_it.extract();
    part->set_vertical(vertical);
    part->ComputeLimits();
    InsertBBox(true, true, part);
  }
}

RefinePartitionPartners()

void tesseract::ColPartitionGrid::RefinePartitionPartners

(

bool

get_desperate

)

Definition at line 1332 of file colpartitiongrid.cpp.

                                                                 {
  ColPartitionGridSearch gsearch(this);
  // Refine in type order so that chasing multiple partners can be done
  // before eliminating type mis-matching partners.
  for (int type = PT_UNKNOWN + 1; type <= PT_COUNT; type++) {
    // Iterate the ColPartitions in the grid.
    gsearch.StartFullSearch();
    ColPartition *part;
    while ((part = gsearch.NextFullSearch()) != nullptr) {
      part->RefinePartners(static_cast<PolyBlockType>(type), get_desperate,
                           this);
      // Iterator may have been messed up by a merge.
      gsearch.RepositionIterator();
    }
  }
}

ReflectInYAxis()

void tesseract::ColPartitionGrid::ReflectInYAxis

(

)

Definition at line 660 of file colpartitiongrid.cpp.

                                      {
  ColPartition_LIST parts;
  ColPartition_IT part_it(&parts);
  // Iterate the ColPartitions in the grid to extract them.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    part_it.add_after_then_move(part);
  }
  ICOORD bot_left(-tright().x(), bleft().y());
  ICOORD top_right(-bleft().x(), tright().y());
  // Reinitializing the grid with reflected coords also clears all the
  // pointers, so parts will now own the ColPartitions. (Briefly).
  Init(gridsize(), bot_left, top_right);
  for (part_it.move_to_first(); !part_it.empty(); part_it.forward()) {
    part = part_it.extract();
    part->ReflectInYAxis();
    InsertBBox(true, true, part);
  }
}

ReTypeBlobs()

void tesseract::ColPartitionGrid::ReTypeBlobs

(

BLOBNBOX_LIST *

im_blobs

)

Definition at line 898 of file colpartitiongrid.cpp.

                                                          {
  BLOBNBOX_IT im_blob_it(im_blobs);
  ColPartition_LIST dead_parts;
  ColPartition_IT dead_part_it(&dead_parts);
  // Iterate the ColPartitions in the grid.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    BlobRegionType blob_type = part->blob_type();
    BlobTextFlowType flow = part->flow();
    bool any_blobs_moved = false;
    if (blob_type == BRT_POLYIMAGE || blob_type == BRT_RECTIMAGE) {
      BLOBNBOX_C_IT blob_it(part->boxes());
      for (blob_it.mark_cycle_pt(); !blob_it.cycled_list(); blob_it.forward()) {
        BLOBNBOX *blob = blob_it.data();
        im_blob_it.add_after_then_move(blob);
      }
    } else if (blob_type != BRT_NOISE) {
      // Make sure the blobs are marked with the correct type and flow.
      BLOBNBOX_C_IT blob_it(part->boxes());
      for (blob_it.mark_cycle_pt(); !blob_it.cycled_list(); blob_it.forward()) {
        BLOBNBOX *blob = blob_it.data();
        if (blob->region_type() == BRT_NOISE) {
          // TODO(rays) Deprecated. Change this section to an assert to verify
          // and then delete.
          ASSERT_HOST(blob->cblob()->area() != 0);
          blob->set_owner(nullptr);
          blob_it.extract();
          any_blobs_moved = true;
        } else {
          blob->set_region_type(blob_type);
          if (blob->flow() != BTFT_LEADER) {
            blob->set_flow(flow);
          }
        }
      }
    }
    if (blob_type == BRT_NOISE || part->boxes()->empty()) {
      BLOBNBOX_C_IT blob_it(part->boxes());
      part->DisownBoxes();
      dead_part_it.add_to_end(part);
      gsearch.RemoveBBox();
      for (blob_it.mark_cycle_pt(); !blob_it.cycled_list(); blob_it.forward()) {
        BLOBNBOX *blob = blob_it.data();
        if (blob->cblob()->area() == 0) {
          // Any blob with zero area is a fake image blob and should be deleted.
          delete blob->cblob();
          delete blob;
        }
      }
    } else if (any_blobs_moved) {
      gsearch.RemoveBBox();
      part->ComputeLimits();
      InsertBBox(true, true, part);
      gsearch.RepositionIterator();
    }
  }
}

SetTabStops()

void tesseract::ColPartitionGrid::SetTabStops

(

TabFind *

tabgrid

)

Definition at line 775 of file colpartitiongrid.cpp.

                                                   {
  // Iterate the ColPartitions in the grid.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    const TBOX &part_box = part->bounding_box();
    TabVector *left_line = tabgrid->LeftTabForBox(part_box, true, false);
    // If the overlapping line is not a left tab, try for non-overlapping.
    if (left_line != nullptr && !left_line->IsLeftTab()) {
      left_line = tabgrid->LeftTabForBox(part_box, false, false);
    }
    if (left_line != nullptr && left_line->IsLeftTab()) {
      part->SetLeftTab(left_line);
    }
    TabVector *right_line = tabgrid->RightTabForBox(part_box, true, false);
    if (right_line != nullptr && !right_line->IsRightTab()) {
      right_line = tabgrid->RightTabForBox(part_box, false, false);
    }
    if (right_line != nullptr && right_line->IsRightTab()) {
      part->SetRightTab(right_line);
    }
    part->SetColumnGoodness(tabgrid->WidthCB());
  }
}

SplitOverlappingPartitions()

void tesseract::ColPartitionGrid::SplitOverlappingPartitions

(

ColPartition_LIST *

big_parts

)

Definition at line 523 of file colpartitiongrid.cpp.

                                  {
  int ok_overlap =
      static_cast<int>(kTinyEnoughTextlineOverlapFraction * gridsize() + 0.5);
  // Iterate the ColPartitions in the grid.
  ColPartitionGridSearch gsearch(this);
  gsearch.StartFullSearch();
  ColPartition *part;
  while ((part = gsearch.NextFullSearch()) != nullptr) {
    // Set up a rectangle search bounded by the part.
    const TBOX &box = part->bounding_box();
    ColPartitionGridSearch rsearch(this);
    rsearch.SetUniqueMode(true);
    rsearch.StartRectSearch(box);
    int unresolved_overlaps = 0;

    ColPartition *neighbour;
    while ((neighbour = rsearch.NextRectSearch()) != nullptr) {
      if (neighbour == part) {
        continue;
      }
      const TBOX &neighbour_box = neighbour->bounding_box();
      if (neighbour->OKMergeOverlap(*part, *part, ok_overlap, false) &&
          part->OKMergeOverlap(*neighbour, *neighbour, ok_overlap, false)) {
        continue; // The overlap is OK both ways.
      }

      // If removal of the biggest box from either partition eliminates the
      // overlap, and it is much bigger than the box left behind, then
      // it is either a drop-cap, an inter-line join, or some junk that
      // we don't want anyway, so put it in the big_parts list.
      if (!part->IsSingleton()) {
        BLOBNBOX *excluded = part->BiggestBox();
        TBOX shrunken = part->BoundsWithoutBox(excluded);
        if (!shrunken.overlap(neighbour_box) &&
            excluded->bounding_box().height() >
                kBigPartSizeRatio * shrunken.height()) {
          // Removing the biggest box fixes the overlap, so do it!
          gsearch.RemoveBBox();
          RemoveBadBox(excluded, part, big_parts);
          InsertBBox(true, true, part);
          gsearch.RepositionIterator();
          break;
        }
      } else if (box.contains(neighbour_box)) {
        ++unresolved_overlaps;
        continue; // No amount of splitting will fix it.
      }
      if (!neighbour->IsSingleton()) {
        BLOBNBOX *excluded = neighbour->BiggestBox();
        TBOX shrunken = neighbour->BoundsWithoutBox(excluded);
        if (!shrunken.overlap(box) &&
            excluded->bounding_box().height() >
                kBigPartSizeRatio * shrunken.height()) {
          // Removing the biggest box fixes the overlap, so do it!
          rsearch.RemoveBBox();
          RemoveBadBox(excluded, neighbour, big_parts);
          InsertBBox(true, true, neighbour);
          gsearch.RepositionIterator();
          break;
        }
      }
      int part_overlap_count = part->CountOverlappingBoxes(neighbour_box);
      int neighbour_overlap_count = neighbour->CountOverlappingBoxes(box);
      ColPartition *right_part = nullptr;
      if (neighbour_overlap_count <= part_overlap_count ||
          part->IsSingleton()) {
        // Try to split the neighbour to reduce overlap.
        BLOBNBOX *split_blob = neighbour->OverlapSplitBlob(box);
        if (split_blob != nullptr) {
          rsearch.RemoveBBox();
          right_part = neighbour->SplitAtBlob(split_blob);
          InsertBBox(true, true, neighbour);
          ASSERT_HOST(right_part != nullptr);
        }
      } else {
        // Try to split part to reduce overlap.
        BLOBNBOX *split_blob = part->OverlapSplitBlob(neighbour_box);
        if (split_blob != nullptr) {
          gsearch.RemoveBBox();
          right_part = part->SplitAtBlob(split_blob);
          InsertBBox(true, true, part);
          ASSERT_HOST(right_part != nullptr);
        }
      }
      if (right_part != nullptr) {
        InsertBBox(true, true, right_part);
        gsearch.RepositionIterator();
        rsearch.RepositionIterator();
        break;
      }
    }
    if (unresolved_overlaps > 2 && part->IsSingleton()) {
      // This part is no good so just add to big_parts.
      RemoveBBox(part);
      ColPartition_IT big_it(big_parts);
      part->set_block_owned(true);
      big_it.add_to_end(part);
      gsearch.RepositionIterator();
    }
  }
}

---

The documentation for this class was generated from the following files:

• /media/home/debian/src/github/tesseract-ocr/tesseract/src/textord/colpartitiongrid.h
• /media/home/debian/src/github/tesseract-ocr/tesseract/src/textord/colpartitiongrid.cpp
